Overhead Bridge Cranes and Hoists

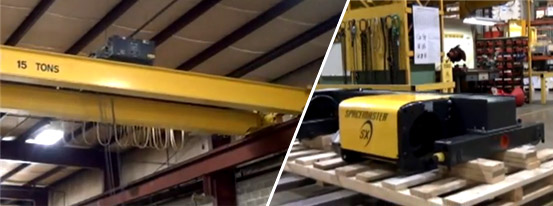

An Overhead Bridge Crane (also called an Overhead Traveling Crane) is a crane that is permanently fixed in place for the purpose of maneuvering extremely large and heavy objects that would be unfeasible, if not impossible, to move manually. This type of crane system is constructed by relying on a beam (rail) that is permanently attached to a support structure. Via a cable or wire rope that is fed through the trolley-mounted mechanism, heavy objects can be moved vertically (raised or lowered), while at the same time moved horizontally along the rail, thereby moving the object for new placement. Smaller overhead cranes might be used to move heavy tools, products, or equipment back and forth between workshops or from a workshop to a loading dock.

Services:

  • New installations
  • Crane relocation
  • Update existing crane system
  • Used crane installation
  • Customized modifications
  • Full complete overhead bridge crane system or components

Custom Cranes And Hoists

These packages are pre-engineered, complete crane component packages utilizing cutting edge technology including the innovative LoadMate electric chain hoist. Variable frequency drives are standard on trolley and bridge motions for smooth starts and stops.

Used Cranes and Hoists:

  • Used Cranes and Hoists
  • 1/8 to 5 ton capabilities
  • Standard bolted girder connection plates
  • Plug-in pendant connection
  • Galvanized steel cable trolleys
  • Plug-in festoon connections
  • LoadMate electric chain hoist with motorized trolley
  • Standard crane spans up to 62 ft (NOTE: Longer spans available)

For Expert Advice

Call
800-767-4075 or Email
